Our Deepest View of the X-Ray Sky

This new map of the hot, energetic universe contains more than one million objects, roughly doubling the number of known X-ray sources discovered over the 60-year history of X-ray astronomy.  (Image: via   pixabay  /  CC0 1.0)
This new map of the hot, energetic universe contains more than one million objects, roughly doubling the number of known X-ray sources discovered over the 60-year history of X-ray astronomy. (Image: via pixabay / CC0 1.0)

Over the course of 182 days, the eROSITA X-ray telescope has completed its first full sweep of the sky that it embarked upon about a year ago. This new map of the hot, energetic universe contains more than 1 million objects, roughly doubling the number of known X-ray sources discovered over the 60-year history of X-ray astronomy. Most of the new sources are active galactic nuclei at cosmological distances, marking the growth of gigantic black holes over cosmic time.

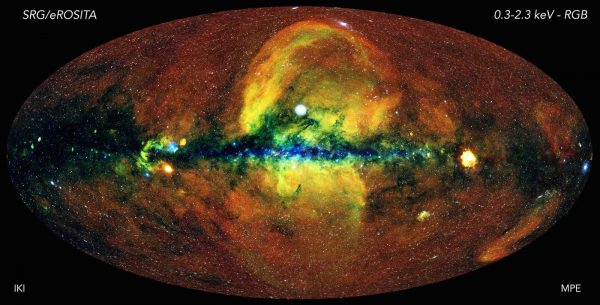

The energetic universe: The first eROSITA all-sky survey was conducted over a period of six months by letting the telescope rotate continuously, thus providing a uniform exposure of about 150-200 seconds over most of the sky, with the ecliptic poles being visited more deeply. As eROSITA scans the sky, the energy of the collected photons is measured with an accuracy ranging from 2% - 6%. To generate this image, in which the whole sky is projected onto an ellipse (so-called Aitoff projection) with the centre of the Milky Way in the middle and the body of the Galaxy running horizontally, photons have been colour-coded according to their energy (red for energies 0.3-0.6 keV, green for 0.6-1 keV, blue for 1-2.3 keV). (Image: Jeremy Sanders, Hermann Brunner und das eSASS-Team (MPE); Eugene Churazov, Marat Gilfanov (im Namen von IKI))

The energetic universe: The first eROSITA all-sky survey was conducted over a period of six months by letting the telescope rotate continuously, thus providing a uniform exposure of about 150-200 seconds over most of the sky, with the ecliptic poles being visited more deeply. As eROSITA scans the sky, the energy of the collected photons is measured with an accuracy ranging from 2% – 6%. To generate this image, in which the whole sky is projected onto an ellipse (so-called Aitoff projection) with the center of the Milky Way in the middle and the body of the Galaxy running horizontally, photons have been color-coded according to their energy (red for energies 0.3-0.6 keV, green for 0.6-1 keV, blue for 1-2.3 keV). (Image: Jeremy Sanders, Hermann Brunner und das eSASS-Team (MPE); Eugene Churazov, Marat Gilfanov (im Namen von IKI))

A million X-ray sources revealing the nature of the hot universe — this is the impressive harvest of the first scan of the entire sky with the eROSITA telescope onboard SRG. Peter Predehl, the Principal Investigator of eROSITA at the Max Planck Institute for Extraterrestrial Physics (MPE), said:

This first complete sky image from eROSITA is about 4 times deeper than the previous all-sky survey by the ROSAT telescope 30 years ago and has yielded around 10 times more sources: about as many as have been discovered by all past X-ray telescopes combined. And while most classes of astronomical objects emit in X-rays, the hot and energetic Universe looks quite different to the one seen by optical or radio telescopes. Looking outside the body of our Galaxy, most of the eROSITA sources are active galactic nuclei, accreting supermassive black holes at cosmological distances, interspersed with clusters of galaxies, which appear as extended X-ray haloes shining thanks to the hot gas confined by their huge concentrations of dark matter.

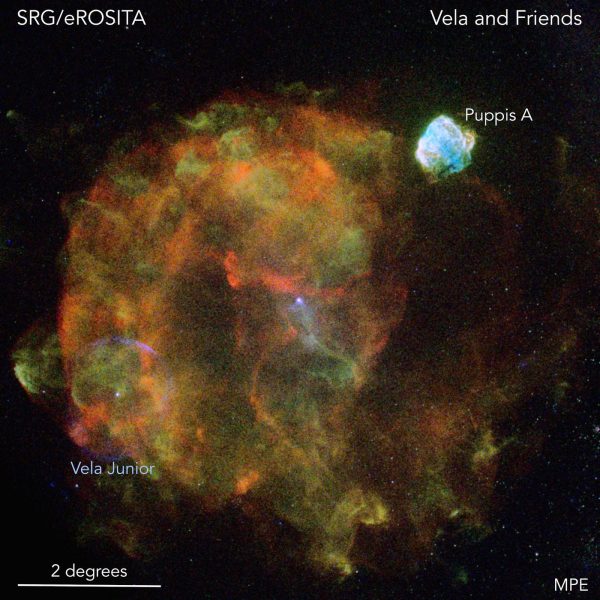

Due to its size and close distance to Earth, the "Vela supernova remnant" which is shown in this picture is one of the most prominent objects in the X-ray sky. The Vela supernova exploded about 12000 years ago at a distance of 800 light-years and overlaps with at least two other supernova remnants, Vela Junior (in the picture seen as bluish ring at the bottom left) and Puppis-A (top right). Vela Junior was discovered just 20 years ago, although this object is so close to Earth that remains of this explosion were found in polar ice cores. All three supernova explosions produced both the X-ray-bright supernova remnants and neutron stars, which shine as intense X-ray point sources near the centres of the remnants. The quality of the new eROSITA data of this "stellar cemetery" will give astronomers many exciting new insights into the physical processes operating in the hot supernova plasma as well as for exploring the exotic neutron stars. (Image: Peter Predehl, Werner Becker (MPE), Davide Mella)

Due to its size and close distance to Earth, the “Vela supernova remnant” that is shown in this picture is one of the most prominent objects in the X-ray sky. The Vela supernova exploded about 12,000 years ago at a distance of 800 light-years and overlaps with at least two other supernova remnants, Vela Junior (in the picture seen as a bluish ring at the bottom left) and Puppis-A (top right). Vela Junior was discovered just 20 years ago, although this object is so close to Earth that remains of this explosion were found in polar ice cores. All three supernova explosions produced both the X-ray-bright supernova remnants and neutron stars, which shine as intense X-ray point sources near the centers of the remnants. The quality of the new eROSITA data of this “stellar cemetery” will give astronomers many exciting new insights into the physical processes operating in the hot supernova plasma, as well as for exploring the exotic neutron stars. (Image: Peter Predehl, Werner Becker (MPE), Davide Mella)

The all-sky image reveals in exquisite detail the structure of the hot gas in the Milky Way itself, and the circum-galactic medium, which surrounds it, whose properties are key to understanding the formation history of our Galaxy. The eROSITA X-ray map also reveals stars with strong, magnetically active hot coronae, X-ray binary stars containing neutron stars, black holes or white dwarves, and spectacular supernova remnants in our own and other nearby galaxies such as the Magellanic Clouds. Mara Salvato, the scientist at MPE who leads the effort to combine eROSITA observations with other telescopes across the electromagnetic spectrum, said:

The survey is also a treasure trove of rare and exotic phenomena, including numerous types of transients and variables, such as flares from compact objects, merging neutron stars, and stars being swallowed by black holes. Salvato went on to say:

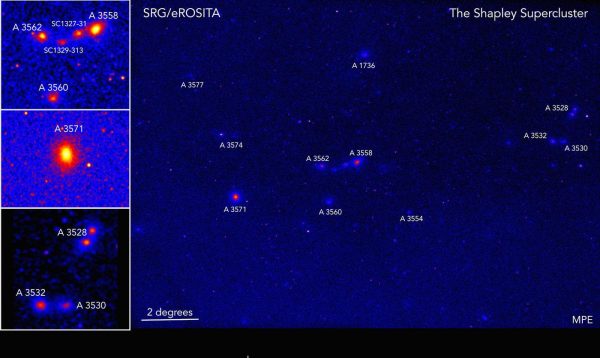

The Shapley supercluster of galaxies is one of the most massive concentrations of galaxies in the local universe at a distance of about 650 million light-years (z~0.05). Each of the dozen extended structures is itself a cluster of galaxies, consisting of 100s to 1000s of individual galaxies, each denoting an intersection of filaments making up the large-scale structure in the Universe. This image spans 16 degrees across the sky (about 30 times the size of the full moon), which translates into about 180 million light-years across at the distance of the Shapley supercluster. The images on the left show a zoom of the the most massive clusters in the Shapley supercluster. (Image: Esra Bulbul, Jeremy Sanders (MPE))

The Shapley supercluster of galaxies is one of the most massive concentrations of galaxies in the local universe at a distance of about 650 million light-years (z~0.05). Each of the dozen extended structures is itself a cluster of galaxies, consisting of hundreds to thousands of individual galaxies, each denoting an intersection of filaments making up the large-scale structure in the Universe. This image spans 16 degrees across the sky (about 30 times the size of the full moon), which translates into about 180 million light-years across at the distance of the Shapley supercluster. The images on the left show a zoom of the most massive clusters in the Shapley supercluster. (Image: Esra Bulbul, Jeremy Sanders (MPE))

Assembling the image has been a mammoth task. So far, the operations team has received and processed about 165 GB of data collected by eROSITA’s seven cameras. While relatively small by “big-data” standards on the ground, operating this complex instrument in space provided its own special challenges. Miriam Ramos-Ceja, a member of the eROSITA operations team at MPE, explained:

The data downlink occurs daily. Miriam Ramos-Ceja went on to say:

While the team is now busy analyzing this first all-sky map and using the images and catalogs to deepen our understanding of cosmology and high-energy astrophysical processes, the telescope continues its sweep of the X-ray sky. Rashid Sunyaev, the Lead Scientist of the Russian SRG team, said:

Kirpal Nandra, head of the high-energy astrophysics group at MPE, adds

Provided by: Max Planck Society [Note: Materials may be edited for content and length.]
