The Smellicopter Is an Obstacle-Avoiding Drone That Uses Live Moth Antenna to Seek Out Smells

Woman wearing a face mask holding a Smellicopter.
A team led by the University of Washington has developed the Smellicopter, an autonomous drone that uses a live antenna from a moth to navigate toward smells. Shown here is lead author Melanie Anderson, a doctoral student of mechanical engineering, holding the Smellicopter. (Image: Mark Stone via University of Washington)

A new drone on the scene is called the Smellicopter. One huge advantage of drones is that these little robots can go places where people can’t, including areas that might be too dangerous, such as unstable structures after a natural disaster or a region with unexploded devices. Researchers are interested in developing devices that can navigate these situations by sniffing out chemicals in the air to locate disaster survivors, gas leaks, explosives, and more. But most sensors created by people are not sensitive or fast enough to be able to find and process specific smells while flying through the patchy odor plumes these sources create.

Now a team led by the University of Washington has developed the Smellicopter: an autonomous drone that uses a live antenna from a moth to navigate toward smells. The Smellicopter can also sense and avoid obstacles as it travels through the air. The team published these results on Oct. 1 in the journal IOP Bioinspiration & Biomimetics. Lead author Melanie Anderson, a UW doctoral student in mechanical engineering, said:

“Nature really blows our human-made odor sensors out of the water, By using an actual moth antenna with Smellicopter, we’re able to get the best of both worlds: the sensitivity of a biological organism on a robotic platform where we can control its motion.”

The moth uses its antennae to sense chemicals in its environment and navigate toward sources of food or potential mates. Co-author Thomas Daniel, a UW professor of biology who co-supervises Anderson’s doctoral research, said:

“Cells in a moth antenna amplify chemical signals. The moths do it really efficiently — one scent molecule can trigger lots of cellular responses, and that’s the trick. This process is super efficient, specific and fast.”

The team used antennae from the Manduca sexta hawkmoth for the Smellicopter. Researchers placed moths in the fridge to anesthetize them before removing an antenna. Once separated from the live moth, the antenna stays biologically and chemically active for up to four hours. That time span could be extended, the researchers said, by storing antennae in the fridge.

By adding tiny wires to either end of the antenna, the researchers were able to connect it to an electrical circuit and measure the average signal from all of the cells in the antenna. The team then compared it to a typical human-made sensor by placing both at one end of a wind tunnel and wafting smells that both sensors would respond to — a floral scent and ethanol, a type of alcohol. The antenna reacted more quickly and took less time to recover between puffs.

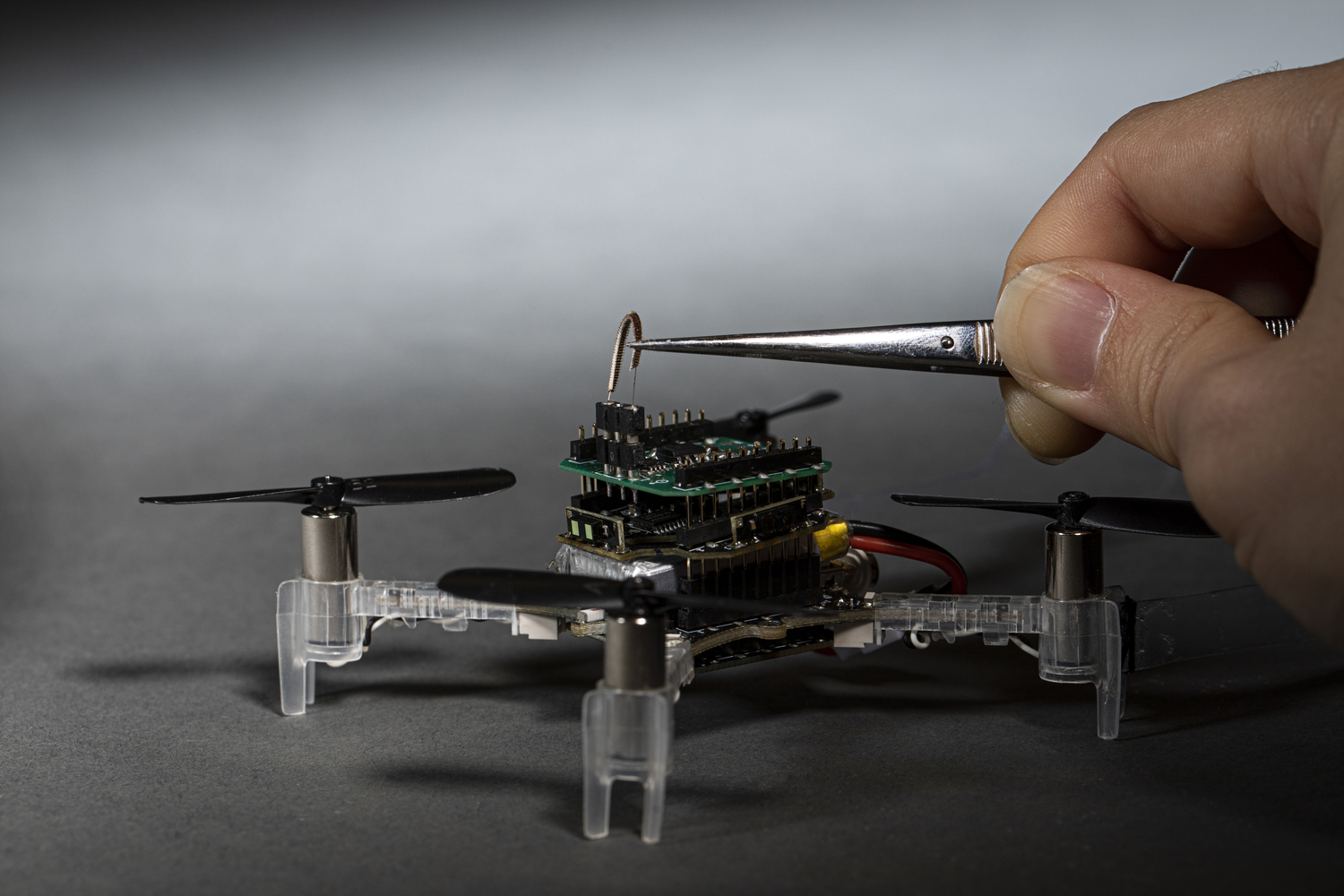

By adding tiny wires to either end of the antenna (the arc being attached here), the researchers were able to connect it to a circuit and record its responses.
By adding tiny wires to either end of the antenna (the arc being attached here), the researchers were able to connect it to a circuit and record its responses. (Image: Mark Stone via University of Washington)

To create the Smellicopter, the team added the antenna sensor to an open-source hand-held commercially available quadcopter drone platform that allows users to add special features. The researchers also added two plastic fins on the back of the drone to create drag to help it be constantly oriented upwind. Co-author and co-advisor Sawyer Fuller, a UW assistant professor of mechanical engineering, said:

“From a robotics perspective, this is genius. The classic approach in robotics is to add more sensors, and maybe build a fancy algorithm or use machine learning to estimate wind direction. It turns out, all you need is to add a fin.”

The Smellicopter detects smells on its own

The Smellicopter doesn’t need any help from the researchers to search for odors. The team created a “cast and surge” protocol for the drone that mimics how moths search for smells. It begins its search by moving to the left for a specific distance. If nothing passes a specific smell threshold, the Smellicopter then moves to the right for the same distance. Once it detects an odor, it changes its flying pattern to surge toward it.

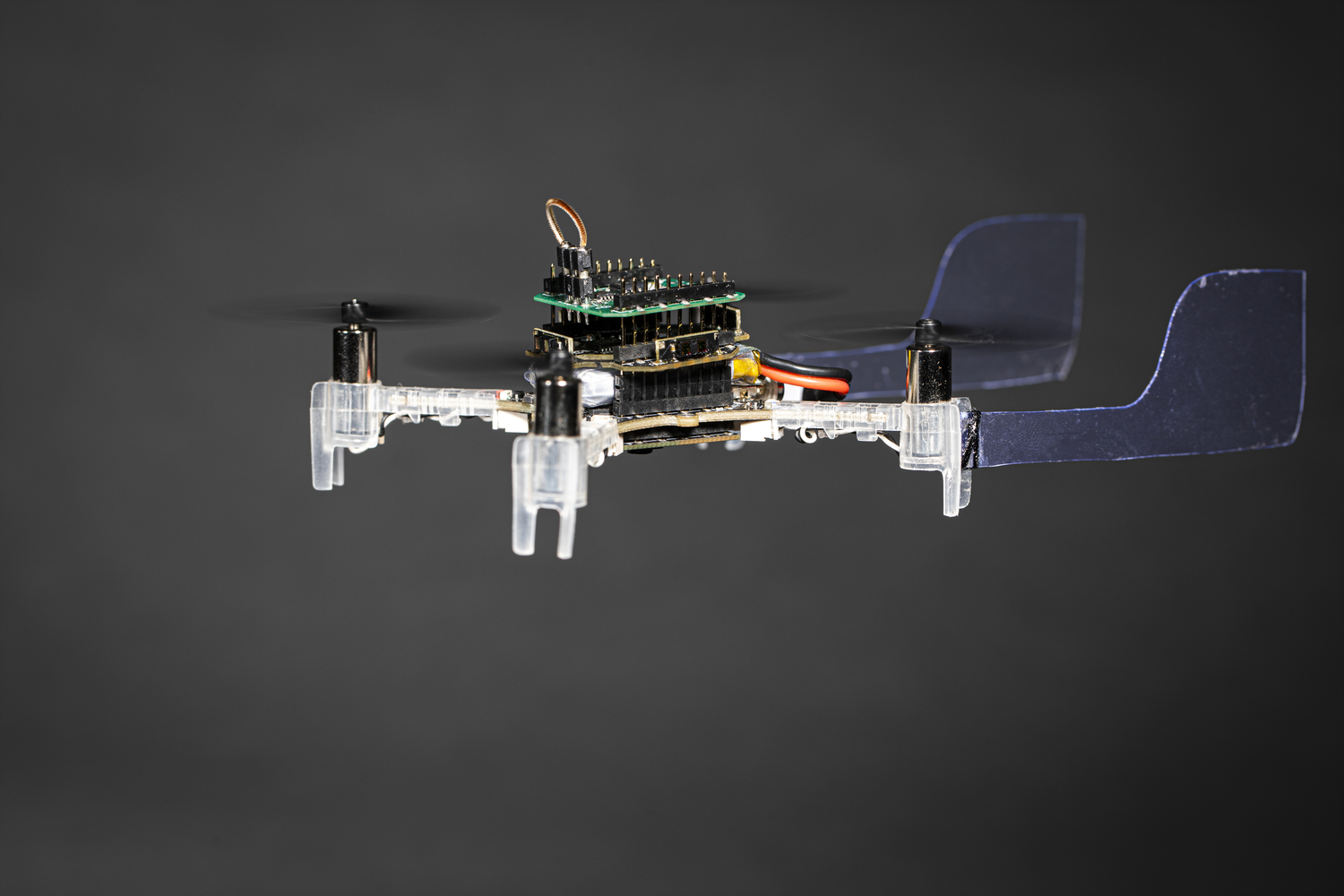

The Smellicopter has two plastic fins on the back to create drag to help it be oriented so that it is constantly facing upwind.
The Smellicopter has two plastic fins (shown here in blue) on the back to create drag to help it be oriented so that it is constantly facing upwind. (Image: Mark Stone via University of Washington)

The Smellicopter can also avoid obstacles with the help of four infrared sensors that let it measure what’s around it 10 times each second. When something comes within about eight inches (20 centimeters) of the drone, it changes direction by going to the next stage of its cast-and-surge protocol. Anderson said:

“So if [the] Smellicopter was casting left and now there’s an obstacle on the left, it’ll switch to casting right. And if [the] Smellicopter smells an odor but there’s an obstacle in front of it, it’s going to continue casting left or right until it’s able to surge forward when there’s not an obstacle in its path.”

Another advantage to the Smellicopter is that it doesn’t need GPS, the team said. Instead, it uses a camera to survey its surroundings, similar to how insects use their eyes. This makes the Smellicopter well-suited for exploring indoor or underground spaces like mines or pipes.

During tests in the UW research lab, the Smellicopter was naturally tuned to fly toward smells that moths find interesting, such as floral scents. But researchers hope that future work could have the moth antenna sense other smells, such as the exhaling of carbon dioxide from someone trapped under rubble or the chemical signature of an unexploded device. Fuller said:

“Finding plume sources is a perfect task for little robots like the Smellicopter and the Robofly. Larger robots are capable of carrying an array of different sensors around and using them to build a map of their world. We can’t really do that at the small scale. But to find the source of a plume, all a robot really needs to do is avoid obstacles and stay in the plume while it moves upwind. It doesn’t need a sophisticated sensor suite for that — it just needs to be able to smell well. And that’s what the Smellicopter is really good at.”

Provided by: Sarah McQuate, University of Washington [Note: Materials may be edited for content and length.]
